Détails sur le produit:
Conditions de paiement et expédition:
|
| Type de produit: | Connecteur d'alimentation (mâle et femelle) | Sexe du connecteur: | Mâle (prise) / Femelle (prise) |
|---|---|---|---|
| Configurations d'épingle: | 2+0 / 2+3 / 2+5 / 2+1+3 / 2+1+5 | Matériel de contact: | Laiton avec le placage à l'or |
| Type de montage (femelle): | Bride carrée/bride diamant (4 trous/2 trous) | type de câble approprié: | Câble d'alimentation blindé/non blindé |
| Type de fiche: | Versions droites / coudées / à montage sur panneau | Personnaliser: | Longueur de câble et calibre de fil personnalisés |
| Application: | Motos et scooters électriques, bornes de recharge pour véhicules à énergie nouvelle |

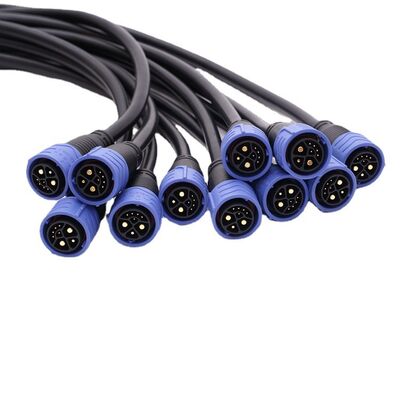

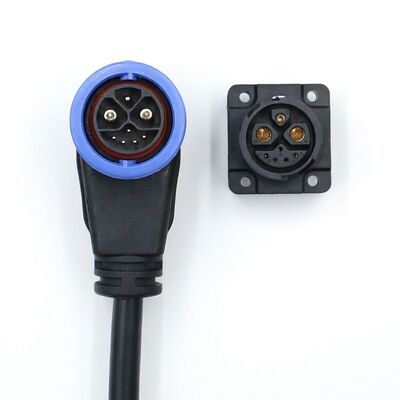

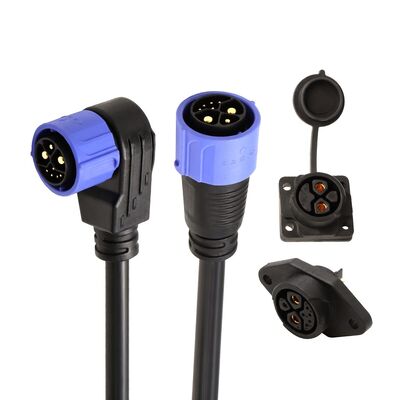

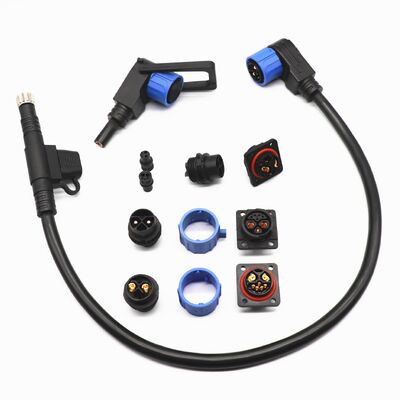

M25 IP67 Waterproof 50A EV Charging Connector for Electric Motorcycle & Scooter
Product Definition
The M25 Series is a high-performance, waterproof power connector designed for electric motorcycles, e-scooters, and light electric vehicles. Featuring 2-8 pin configurations, robust IP67 protection, and high current carrying capacity up to 50A, it is ideal for safe and reliable charge/discharge applications in harsh outdoor environments.
Key Features
M25 Series Charging Connector: Technical Parameters
| Parameter | Specification |
| Series | M25 Series |
| Pin Count | 2 ~ 8 Pin (2+0 / 2+3 / 2+5 / 2+1+3 etc.) |
| Rated Current | 30A ~ 50A (continuous) |
| Waterproof Rating | IP67 |
| Flame Retardant | UL94 V0 |
| Operating Temperature | -40°C ~ +105°C (typical) |
| Cable Length | Standard 1M (customizable) |
| Pin Material | Copper with Gold/Silver Plating |
| Housing Material | High-strength engineering plastic |
| Mating Type | Plug / Socket, Panel Mount, Flange |
Application Scenoris
Frequently Asking Questions(FAQ)
Q1: Is the M25 truly waterproof for long-term outdoor use?
A1: Yes. With IP67 rating and multi-layer sealing, it reliably withstands rain, dust, and high-pressure washing — solving common waterproof failure issues in outdoor EV applications.
Q2: Can it handle continuous high current without overheating?
A2: Rated for 50A continuous current with low-resistance gold/silver plated pins, it minimizes heat buildup and voltage drop, addressing frequent overheating problems in e-mobility connectors.
Q5: Is it easy to install and customize?
A5: Highly flexible — supports 2-8 pins, multiple mounting styles (inline/panel/flange), and full customization of cable length and layout.
Tags / Keywords
M25 connector plug, 50A EV connector, waterproof charging plug, EV charging connector
