Détails sur le produit:
Conditions de paiement et expédition:
|
| Type de produit: | Assemblage de stockage d'énergie | Isolation de câble: | PVC 105°C Jaune |
|---|---|---|---|
| Type de conducteur: | Cuivre toronné flexible RV | Interface terminale: | Goujon fileté M8/M10 (en option) |
| Mécanisme de verrouillage: | Écrou fileté avec conception anti-vibration | Méthode de sertissage: | Sertissage rotatif (sertissage rotatif pour conducteur multibrin) |
| Application: | Module de batterie / PDU / ESS commercial et industriel / Stockage d'énergie résidentiel |

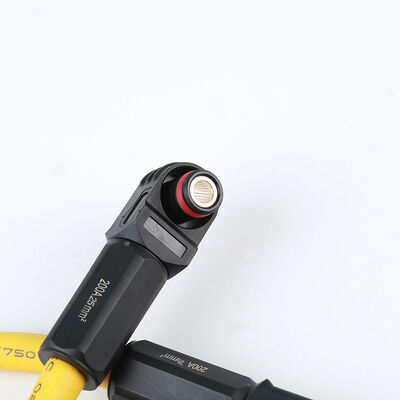

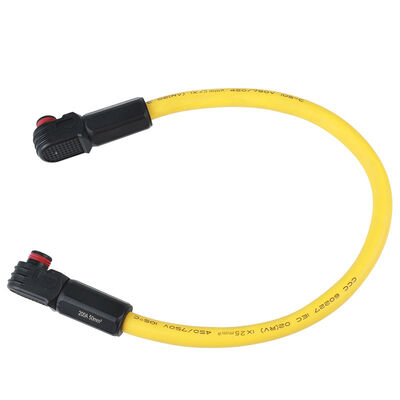

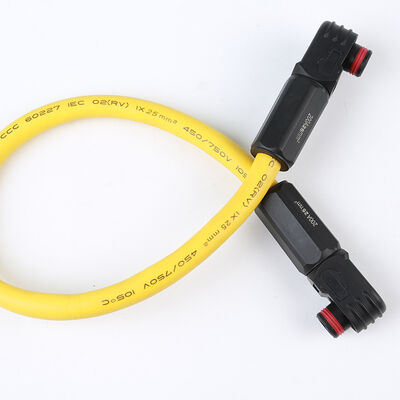

25mm² Energy Storage Cable Assemblies And Wire Harness Processing For Energy Storage Cabinet
Product Definition
A high-reliability cable assembly designed for energy storage systems (ESS), featuring a 25mm² RV flexible conductor with CCC/IEC certification, flame-retardant PA66 connectors with IP65-sealed threaded terminals, and 105°C heat-resistant yellow insulation. Engineered for secure power transmission between battery modules, PDUs, and inverters in industrial energy storage applications.
Technical Parameters
| Parameter | Value |
| Product Name | Energy Storage Cable Assembly |
| Model | LXX-25 |
| Conductor Cross-Section | 25mm² (RV flexible conductor) |
| Cable Standard | CCC 60227 IEC 02(RV) |
| Rated Voltage | 450/750V |
| Rated Current | 150A |
| Temperature Rating | 105°C |
| Cable Color | Yellow (Insulation) |
| Connector Type | Threaded round terminal with lock |
| Connector Material | PA66 flame-retardant housing |
| Sealing Ring | Red silicone rubber O-ring |
| Protection Rating | IP65 |
| Flame Retardancy | UL94 V-0 |
| Cable Length | Customizable (200mm–2000mm) |
| Terminal Plating | Tin-plated copper |
| Application | Energy Storage System (ESS) |
| Certification | CCC / IEC / RoHS |
Key Features
Application Scenarios
#Tags
Energy Storage Cable, ESS Connector, High Current Assembly
