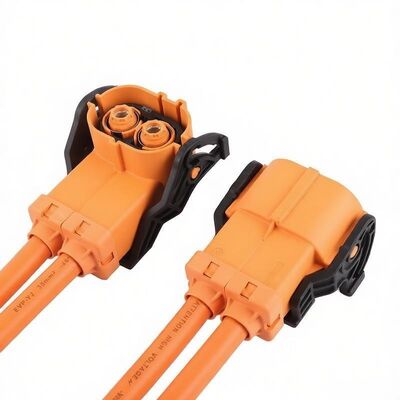

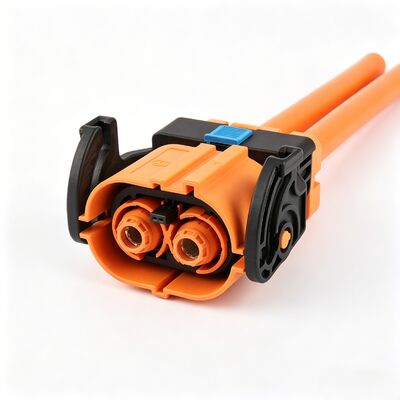

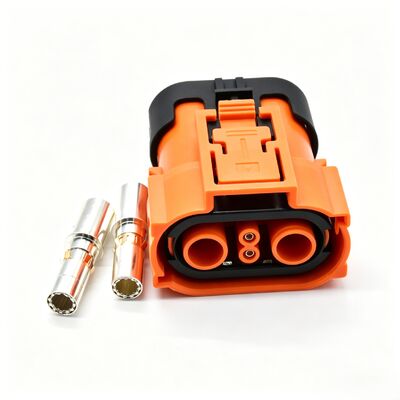

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System
1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

Image Grand :  1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Ritian
Certification: CE
Numéro de modèle: Connecteur HVIL série 8 mm
Conditions de paiement et expédition:
Quantité de commande min: 100 pièces
Prix: negotiable
Détails d'emballage: Carton neutre ou sur mesure
Délai de livraison: 5 à 8 jours pour les échantillons, 15 à 25 jours pour le vrac
Conditions de paiement: T/T
Capacité d'approvisionnement: 30000 PCs/mois
Description de produit détaillée
Nom de la série: Ensemble de connecteurs HVIL New Energy série 8 mm Type de contact: Nouveau connecteur d'alimentation énergétique
Genre: Fiche et prise (mâle/femelle) Fonction HVIL: Verrouillage actif haute tension pour une sécurité renforcée.
Protection contre le contact: Protection IPXXB lorsqu'il n'est pas connecté. Options de câble: Compatible avec les câbles blindés 25/35/50mm².
Options de montage: Versions en ligne, à angle droit et à montage sur panneau disponibles. Sécurité visuelle: Boîtier orange vif pour une identification immédiate de la haute tension.
Application: Connexions du système de batterie, interfaces du groupe motopropulseur, composants d'alimentatio

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System


Product Definition

The 8mm Series High-Voltage Interlocking Connector is a robust, shielded HVIL (High Voltage Inter-Lock) connector designed for safe and reliable power transmission in high-voltage electrical systems. Engineered for demanding environments, it features excellent mechanical strength, high current-carrying capacity, and superior environmental protection. Its compact 8mm interface and orange high-voltage safety coloring make it ideal for electric vehicles (EVs), hybrid vehicles, energy storage systems, and industrial high-voltage applications.


1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 0



Technical Parameters: 8mm HVIL Connector Assembly



Parameter Specification
Pull-out Force ≤ 100N
Temperature Range -40°C ~ +140°C
Rated Voltage 1500V DC
Rated Current 25mm² = 125A 35mm² = 150A 50mm² = 200A
Mating Cycles ≥ 50 times
Protection Rating IP67 / IP6K9K (mated) IPXXB (unmated)
Cable Cross-section 25mm² / 35mm² / 50mm² (shielded)
Interface 8mm
Housing Material High-performance engineering plastic
Color High-Voltage Orange


Key Features


  1. High Safety Performance: Integrated HVIL (High Voltage Interlock) mechanism ensures safe connection and disconnection of high-voltage circuits.
  2. Excellent Environmental Resistance: IP67/IP6K9K rating provides dustproof, waterproof, and high-pressure wash-down protection — suitable for harsh outdoor and automotive environments.
  3. Wide Temperature Tolerance: Reliable operation from -40°C to +140°C.
  4. High Current Capacity: Supports up to 200A (50mm²), meeting the power demands of modern electric drivetrains and energy systems.
  5. Strong Mechanical Design: Pull-out force ≤100N with secure locking system for vibration-heavy applications.
  6. Shielded Design: Effective electromagnetic interference (EMI) shielding for clean power transmission.

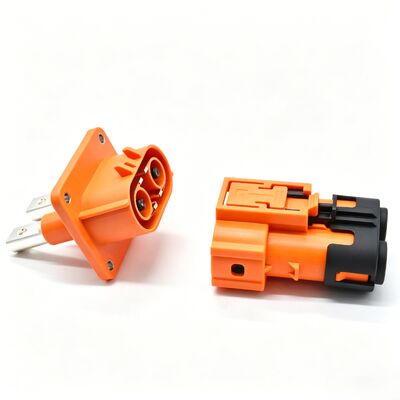

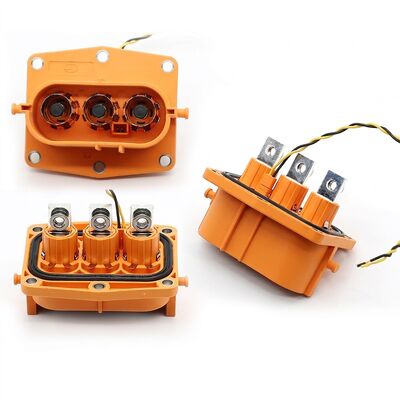

  7. Compact & Flexible: 8mm interface with multiple straight and right-angle variants for easy system integration.

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 1

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 2

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 3

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 4



Application Scenarios


  • Electric Commercial Vehicles (buses, trucks, vans)
  • Passenger Electric Vehicles (BEV/PHEV)
  • Hybrid Electric Systems
  • Energy Storage Systems (ESS)
  • High-voltage battery packs and inverters
  • Industrial high-power equipment
  • Charging infrastructure (high-power DC charging)
  • Marine and off-road electric applications

1500V 200A 8mm High Voltage Interlock Connector IP67 for Power Distribution and Battery System 5



#Tags / Keywords

HVIL ConnectorHigh Voltage Connector8mm HV connector1500V DC connectorNew Energy Vehicle PartsPower Distribution Connector
